Documented Parts
11 Parts in This Category

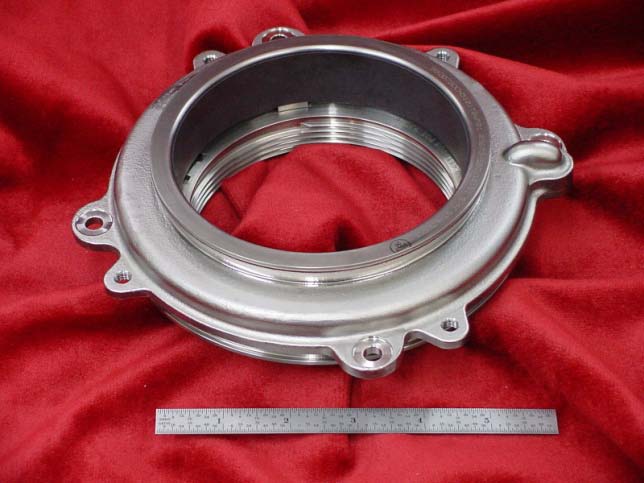

Seal Housing
Material
Titanium Casting, Carbon Seal & Inco 600
Coating
None
Components
3
Pieces
3
Size
8 In. Dia. × 2 In. High
EB WeldingPrecision MachiningPressure Testing

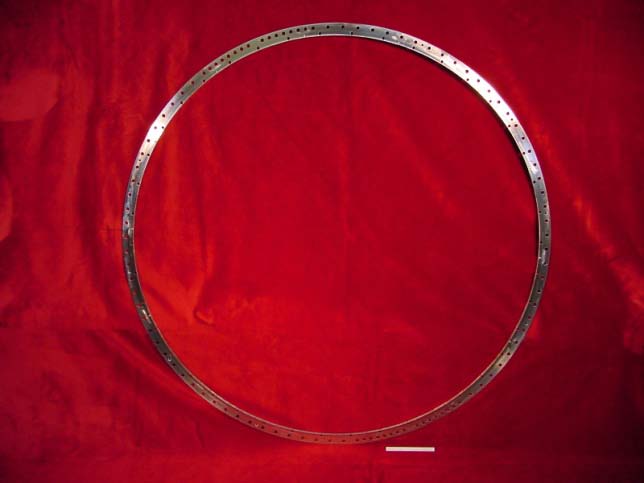

Support Seal
Material
Rene 41 & HAST X
Coating
None
Components
3
Pieces
16
Size
52 In. Dia. × 0.75 In. High
Vacuum Brazing (Ni)TIG WeldingSpot WeldingLaser MachiningPrecision Machining

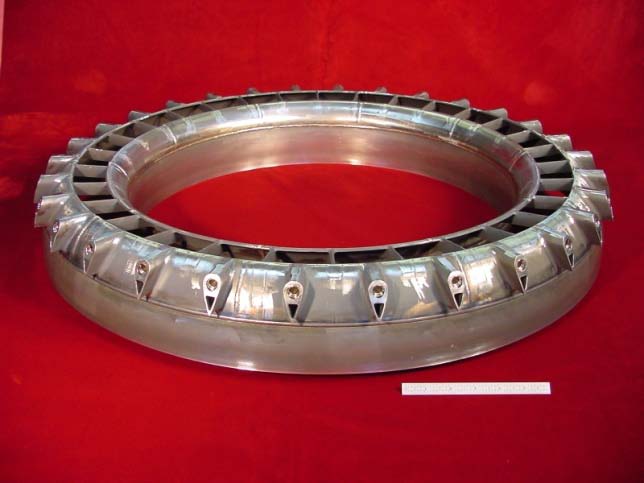

Cowl Combustor
Material
Inco 718, HAST X & Stellite
Coating
None
Components
4
Pieces
42
Size
31.5 In. Dia. × 4 In. High
Heat TreatingGTAW WeldEDMPrecision Machining

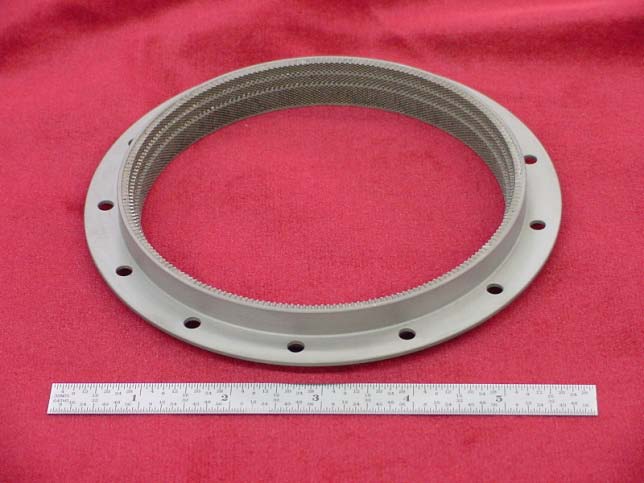

Air Seal
Material
Inco 909, Hast B & Hast X Honeycomb
Coating
Chromide or Codep
Components
3
Pieces
3
Size
5 In. Dia. × 0.75 In. High
Vacuum Brazing (Ni)Heat TreatingEDMPrecision Machining

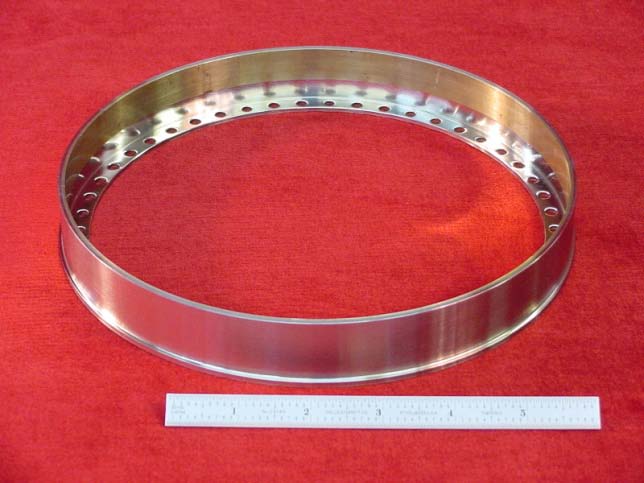

Seal
Material
321 S.S., Lapalloy & Silver
Coating
None
Components
3
Pieces
3
Size
8.5 In. Dia. × 1 In. High
Spot WeldingSilver Puddle BrazingPrecision Machining

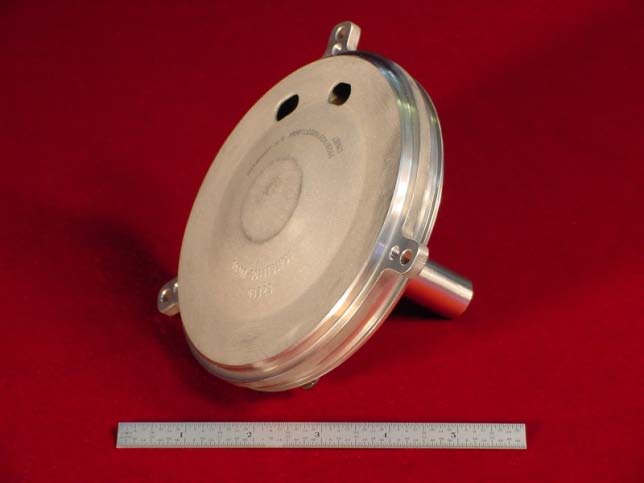

Cover C-Sump
Material
321 SS
Coating
None
Components
4
Pieces
4
Size
6.5 In. Dia. × 4 In. High
TIG WeldingVacuum Brazing (Ni)Pressure TestingPrecision Machining

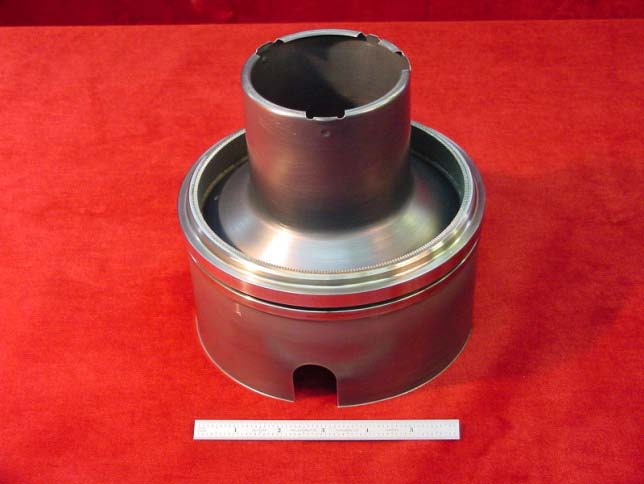

Heat Shield
Material
Inco 718 & Hast X Honeycomb
Coating
None
Components
5
Pieces
5
Size
7 In. Dia. × 0.75 In. High
Vacuum Brazing (Ni)EB WeldingEDMPrecision Machining

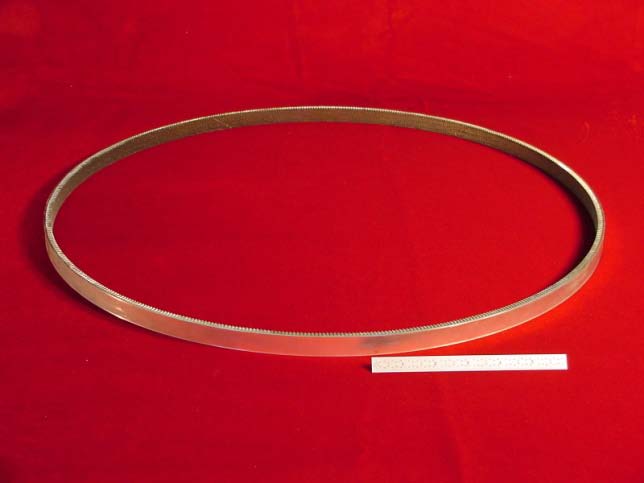

Seal
Material
Inco 718 & Hast X Honeycomb
Coating
None
Components
2
Pieces
2
Size
21.5 In. Dia. × 1 In. High
Vacuum Brazing (Ni)TIG WeldingHeat Treating

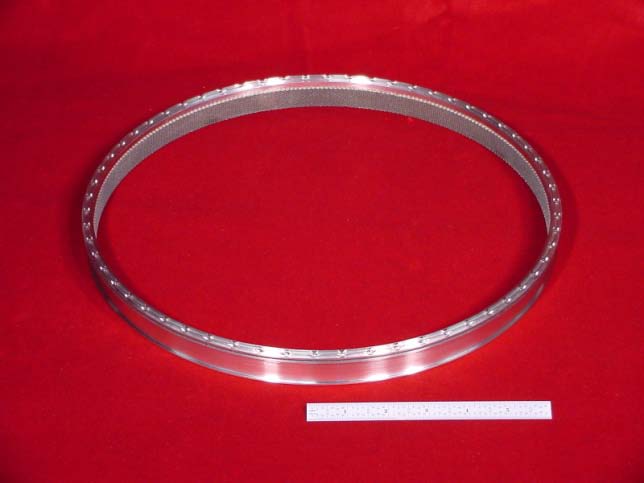

Seal
Material
Inco 600, L605 & Hast X Honeycomb
Coating
None
Components
4
Pieces
63
Size
13.5 In. Dia. × 1 In. High
Vacuum Brazing (Ni)TIG WeldingEDMPrecision Machining

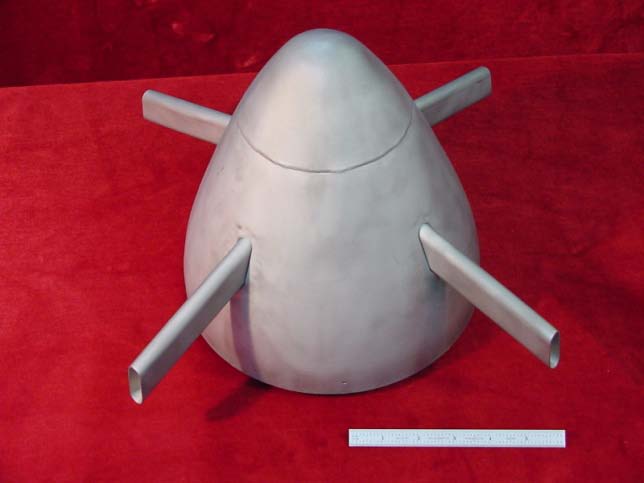

Centerbody
Material
A286
Coating
None
Components
12
Pieces
28
Size
16 In. Dia. × 10 In. High
TIG WeldingSpot WeldingHeat TreatingPrecision Machining

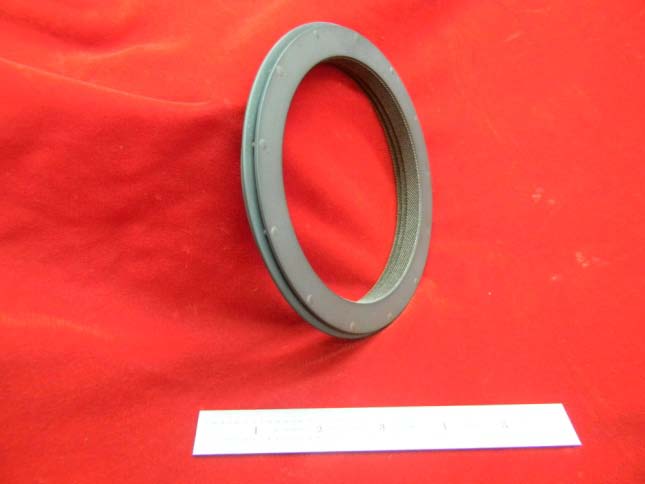

Air Seal
Material
Hast B, Hast X & L605
Coating
Codep
Components
4
Pieces
16
Size
5.67 In. Dia. × 0.67 In. High
Vacuum BrazingGTAW WeldingEDMPrecision Machining
