Documented Parts
8 Parts in This Category

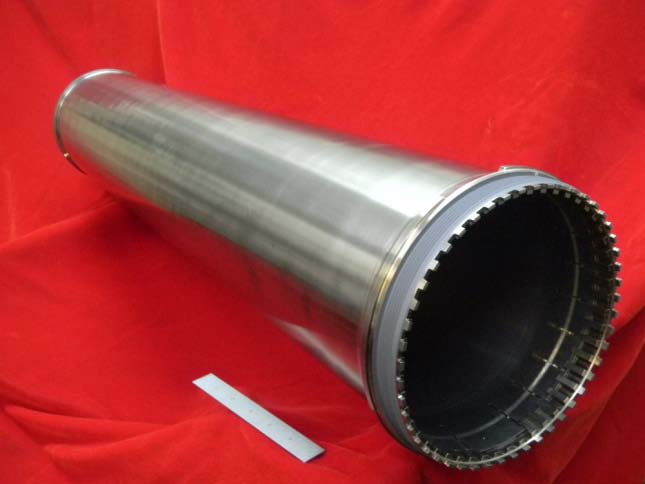

Air Duct
Material
Inco 718
Coating
Plasma Spray & Lube Coat
Components
6
Pieces
8
Size
7.31 In. Dia. × 36.93 In. Long
Vacuum Sintering & BrazingEB WeldingHeat TreatingGTAW WeldingBalancingUltra-Precise Machining

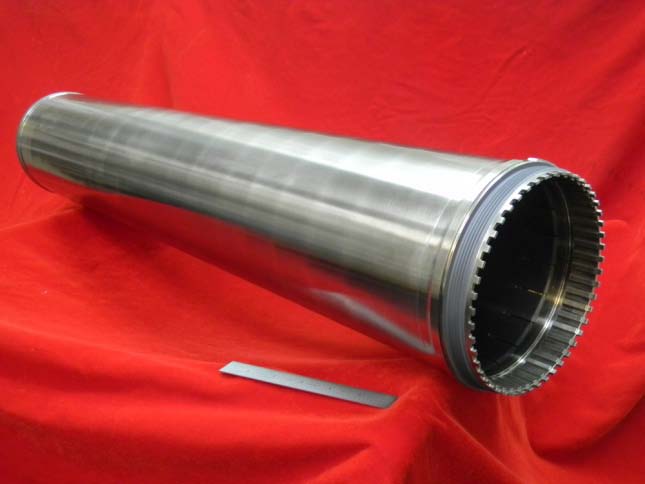

Air Duct
Material
Inco 718
Coating
Plasma Spray & Lube Coat
Components
6
Pieces
9
Size
6.78 In. Dia. × 33.32 In. Long
Vacuum Sintering & BrazingEB WeldingHeat TreatingGTAW WeldingBalancingUltra-Precise Machining

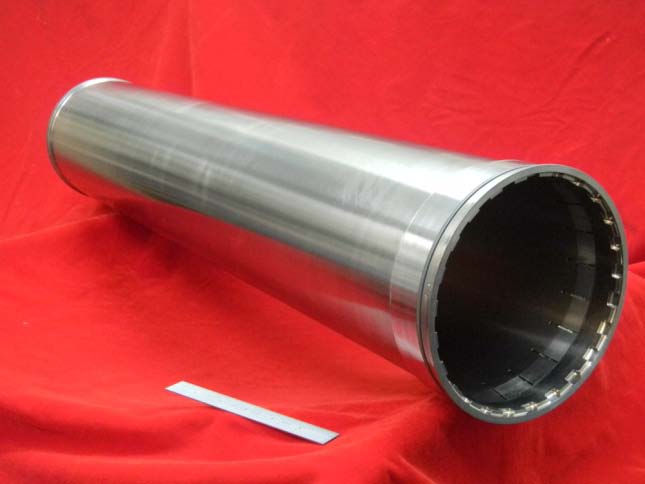

Air Duct
Material
Inco 718
Coating
Plasma Spray & Lube Coat
Components
6
Pieces
8
Size
6.29 In. Dia. × 33.25 In. Long
Vacuum Sintering & BrazingEB WeldingHeat TreatingGTAW WeldingBalancingUltra-Precise Machining

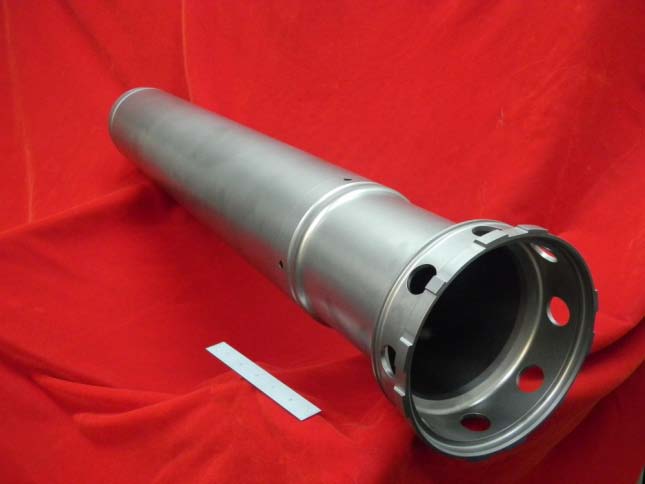

Air Duct (Titanium)
Material
Ti-64 Titanium
Coating
Plasma Spray
Components
7
Pieces
13
Size
5.24 In. Dia. × 31.24 In. Long
Vacuum Heat TreatEB WeldingGTAW WeldingShot PeeningSpecial CleaningBalancingUltra-Precise Machining

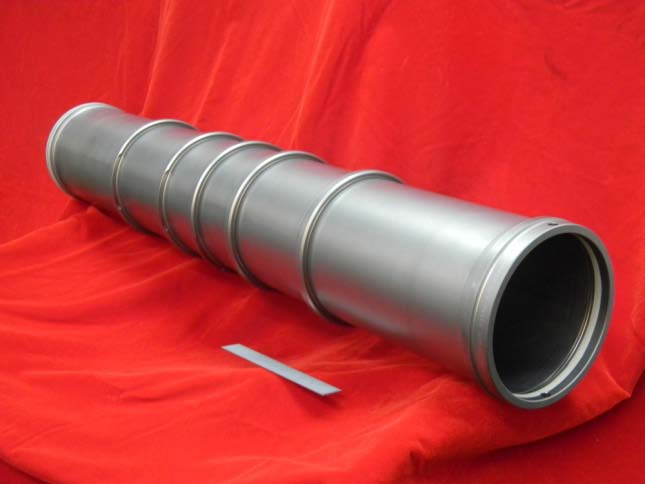

Air Duct (Titanium)
Material
Ti-64 Titanium
Coating
Plasma Spray & Lube Coat
Components
6
Pieces
7
Size
5.06 In. Dia. × 35.36 In. Long
Vacuum Heat TreatingEB WeldingGTAW WeldShot PeeningSpecial CleaningBalancingUltra-Precise Machining

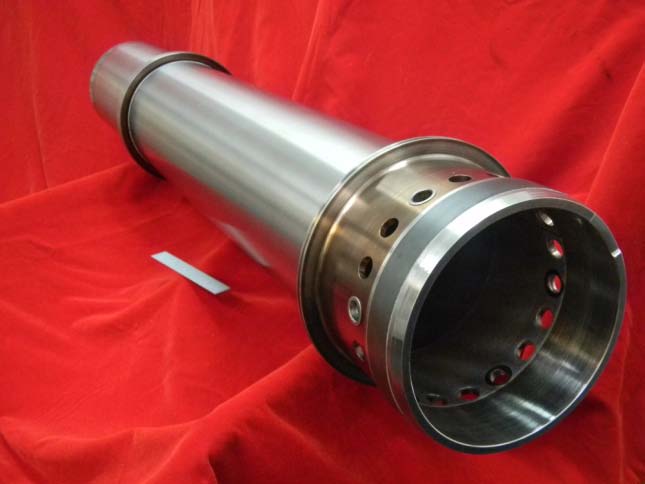

Air Duct (A286)
Material
A286
Coating
None
Components
7
Pieces
12
Size
7.75 In. Dia. × 41.63 In. Long
Vacuum Brazing & Heat TreatingGTAW WeldingBondingBalancingUltra-Precise Machining

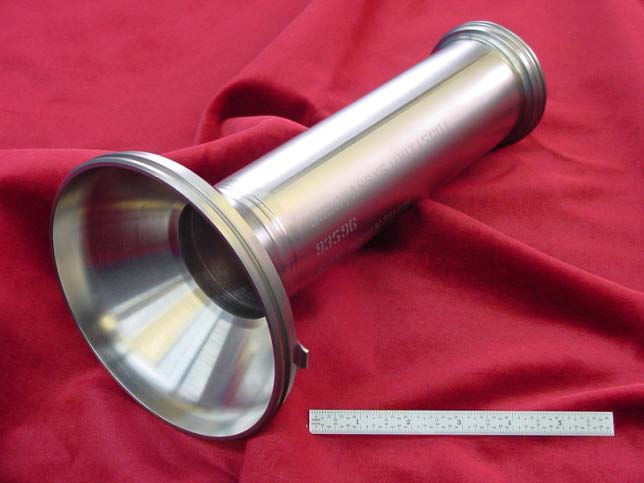

Seal Tube
Material
Titanium
Coating
None
Components
3
Pieces
3
Size
6.5 In. Dia. × 13 In. High
EB WeldingHeat TreatingGlass Bead PeeningPrecision Machining

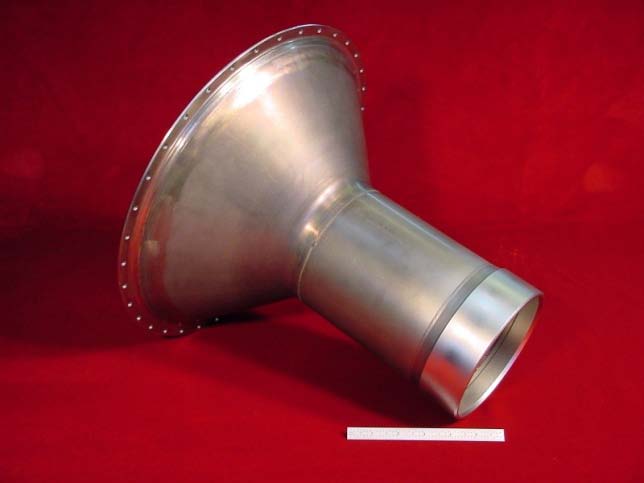

Air Tube
Material
Inco 718 & A286
Coating
None
Components
5
Pieces
5
Size
15 In. Dia. × 14 In. High
EB WeldingHeat TreatingPrecision Machining
