Documented Parts
13 Parts in This Category
Front Frame
Material
Inco 718 & Inco 625
Coating
None
Components
56
Pieces
343
Size
48 In. Dia. × 4.5 In. High
Vacuum Brazing (Ni & NiPd)
TIG Welding
Heat Treating
EDM
Pressure Testing
Torch Brazing
Precision Machining

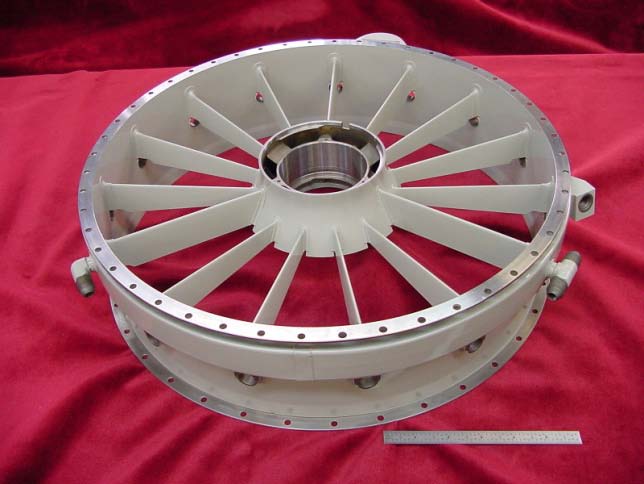

Front Frame
Material
410 Stainless
Coating
Paint / Coat
Components
45
Pieces
168
Size
20 In. Dia. × 4 In. High
Hydrogen Brazing (Cu & Ag)
TIG Welding
Heat Treating
EDM
Pressure Testing
Precision Machining

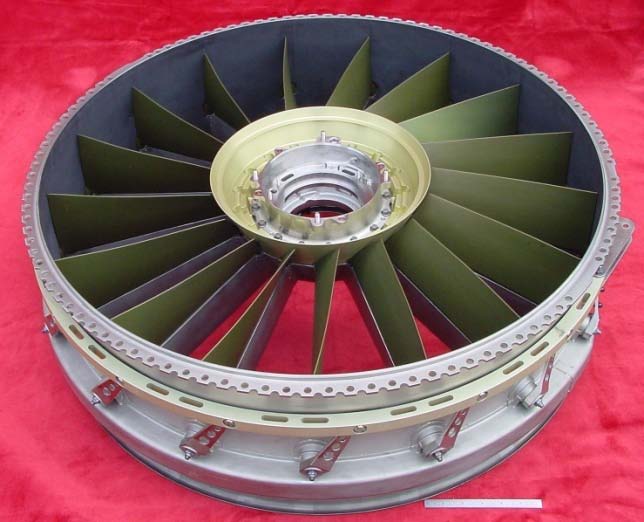

Front Frame
Material
Inco 718, Titanium & Aluminum
Coating
Flame Spray
Components
118
Pieces
687
Size
36 In. Dia. × 10.5 In. High
Vacuum Brazing (Ni)
TIG Welding
Heat Treating
EB Welding
EDM
Pressure Testing
Precision Machining
Support Nozzle
Material
Inco 718, Inco 625 & Hast X Honeycomb
Coating
Thermal Spray
Components
10
Pieces
168
Size
23 In. Dia. × 8 In. High
Vacuum Brazing (Ni)
Heat Treating
EDM
EB Welding
Air Flow Testing
Precision Machining

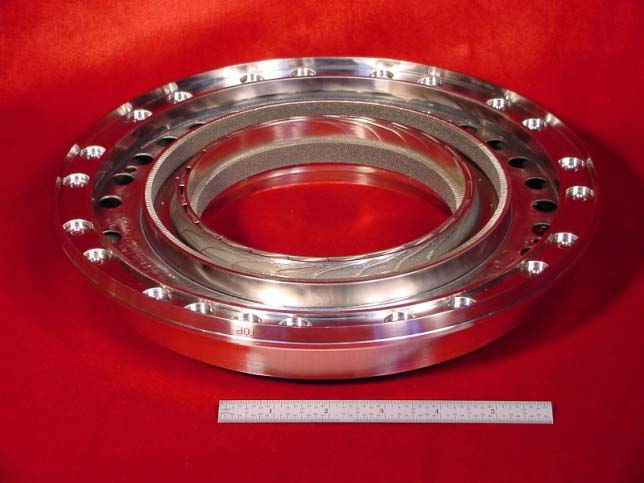

Nozzle Support
Material
Inco 718 & Hast X Honeycomb
Coating
None
Components
10
Pieces
37
Size
11 In. Dia. × 2 In. High
Vacuum Brazing (Ni)
Heat Treating
EB Welding
EDM
Air Flow Testing
Precision Machining

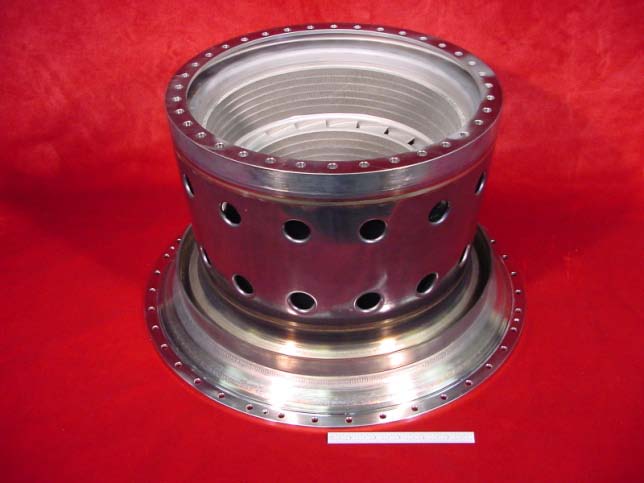

Pressure Balance Seal
Material
Inco 718 & Hast X Honeycomb
Coating
Plasma Spray
Components
26
Pieces
96
Size
21 In. Dia. × 12.5 In. High
Vacuum Brazing (Ni)
TIG Welding
EB Welding
EDM
Heat Treating
Seam Weld
Flow Gaging
Precision Machining

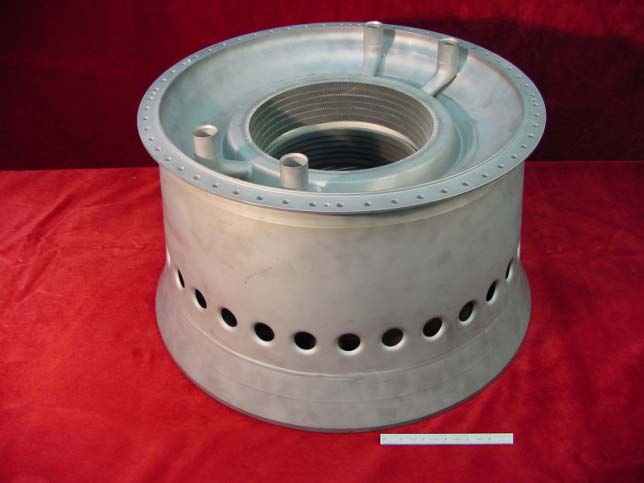

Pressure Balance Seal
Material
Inco 718, Hast B & Hast X Honeycomb
Coating
None
Components
22
Pieces
41
Size
19 In. Dia. × 11 In. High
Vacuum Brazing (Ni)
TIG Welding
EB Welding
EDM
Heat Treating
Flow Gaging
Precision Machining
LPT Seal
Material
Rene 41, Inco 718 & Hast X Honeycomb
Coating
Plasma Spray
Components
9
Pieces
17
Size
24.38 In. Dia. × 2.28 In. High
Vacuum Brazing & Heat Treat
EB Weld
GTAW Weld
EDM
Air Flow
Precision Machining
Support Seal
Material
17-4 PH Stainless
Coating
None
Components
6
Pieces
6
Size
24.07 In. Dia. × 3.27 In. High
Vacuum Brazing & Heat Treat
EB Weld
GTAW Weld
Pressure Test
Precision Machining
Turbine Nozzle
Material
L605 & 321 Stainless
Coating
Wet Grip Blast
Components
13
Pieces
139
Size
17 In. Dia. × 2 In. High
Vacuum Brazing (Ni)
TIG Welding
Spot & Seam Welding
Heat Treating
EDM
Gage Flow
Precision Machining

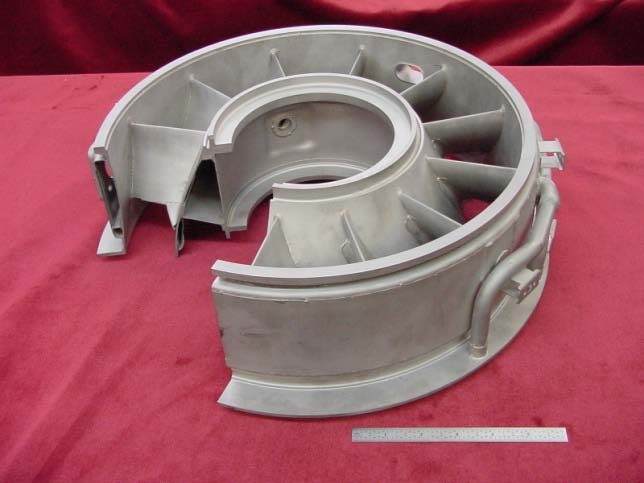

Swirl Frame
Material
Inco 718
Coating
None
Components
62
Pieces
146
Size
16 In. Dia. × 5 In. High
Vacuum Brazing (Ni)
TIG Welding
Heat Treating
Laser
Chem Milling
EDM
EB Welding
Pressure Testing
Flow Testing
Precision Machining

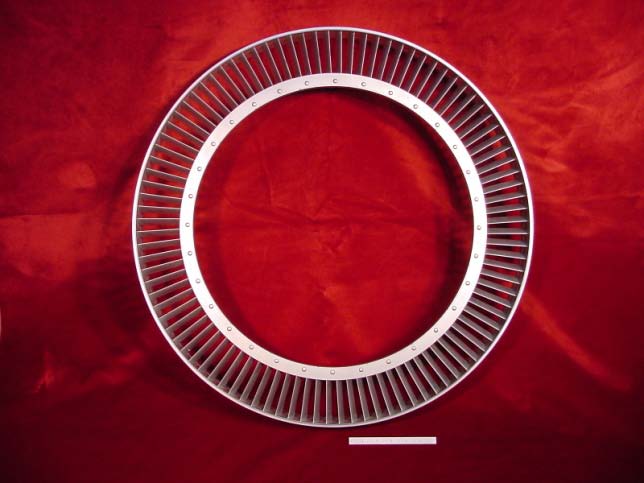

Stator
Material
410 SS
Coating
Anti Galling & Thermal Spray
Components
7
Pieces
148
Size
28 In. Dia. × 2.75 In. High
Vacuum Brazing (Ni)
TIG Welding
Heat Treating
Precision Machining

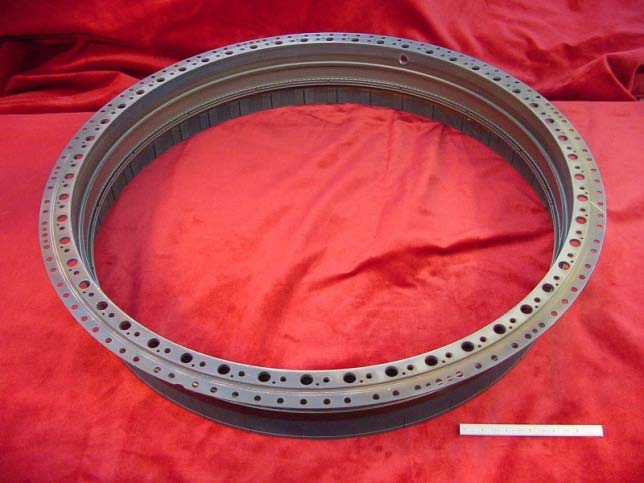

LPT Seal
Material
Inco 718 & Inco 903
Coating
Chromide Coat
Components
6
Pieces
112
Size
27.5 In. Dia. × 5 In. High
Vacuum Brazing (Ni)
TIG Welding
Heat Treating
Spot Welding
EB Welding
EDM
Shot Peening
Precision Machining
