Product Category 06

Hollow Vanes, Vane Segments
& Swirlers

Hollow Vanes, Vane Segments, and Swirlers produced via Vacuum Brazing (Nickel), Hydrogen Brazing (Copper), Air Flow Testing, and Ultra-Precision Machining in Hastelloy X, 410 S.S., and Inco 718.

Documented Parts

3 Parts in This Category

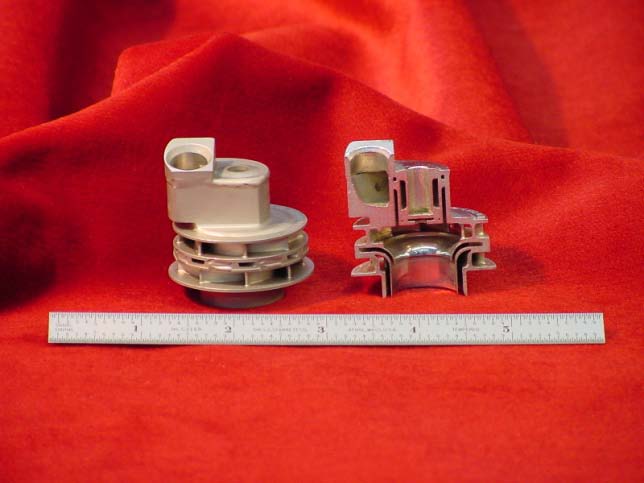

Swirler
Swirler
Material
Hast X (Hastelloy X)
Coating
None
Components
12
Pieces
26
Size
1.5 In. Dia. × 1.5 In.
EB WeldingVacuum Brazing (Ni)Heat TreatingAirflow TestingEDMPrecision Machining

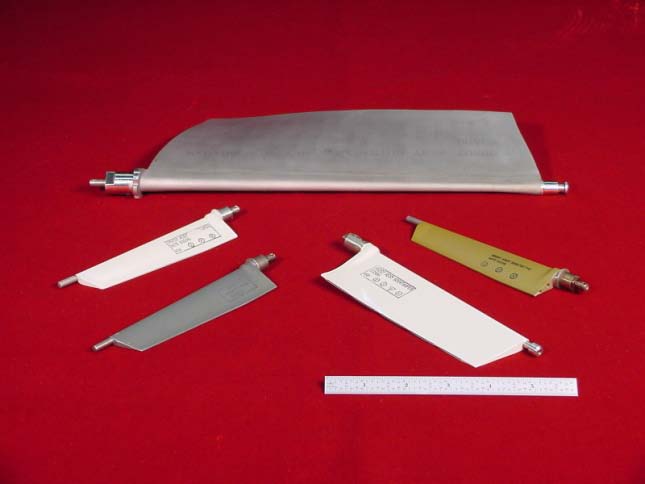

Hollow Vanes
Hollow Vanes
Material
410 S.S. or Inco 718
Coating
Paint or Coated
Components
5
Pieces
5
Size
Various
Vacuum Brazing (Ni)Hydrogen Brazing (Cu)Heat TreatingAir Flow TestingUltra Precision Machining

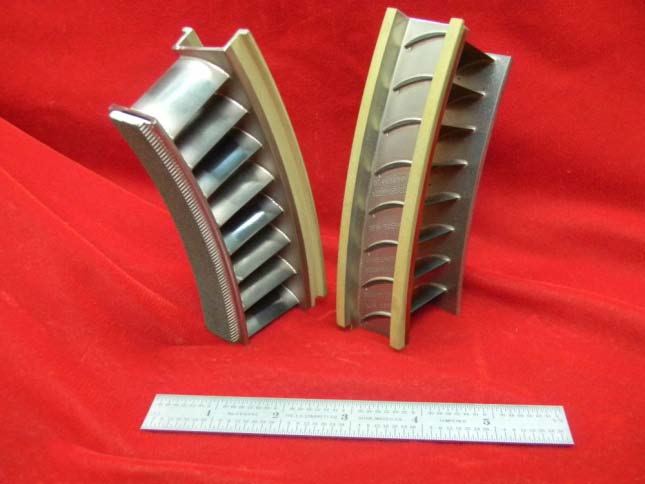

Vane Segments
Vane Segments
Material
Inco 600, Inco 718 & Hast X Honeycomb
Coating
Plasma Spray
Components
7
Pieces
14
Size
6.50 In. × 1.25 In.
Vacuum BrazingHeat TreatingEDMPrecision Machining
