Product Category 07

Aluminum Dip
Brazed Components

Oil Tanks, Manifolds, Turbine Stators, Oxidizers, Air/Oil Impeller Separators, and Turbine Rotors. Produced in our 24" capacity aluminum salt bath dip brazing facility with precision machining and balancing.

Documented Parts

8 Parts in This Category

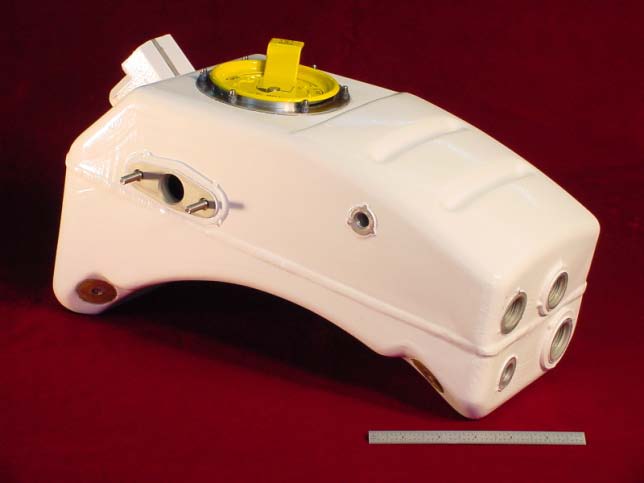

Oil Tank
Oil Tank
Material
Aluminum
Coating
Anodize & Si Coat RTV 577
Components
32
Pieces
54
Size
5 In. × 8 In. × 16 In.
Dip BrazingTIG WeldingHeat TreatingPressure TestingPrecision Machining

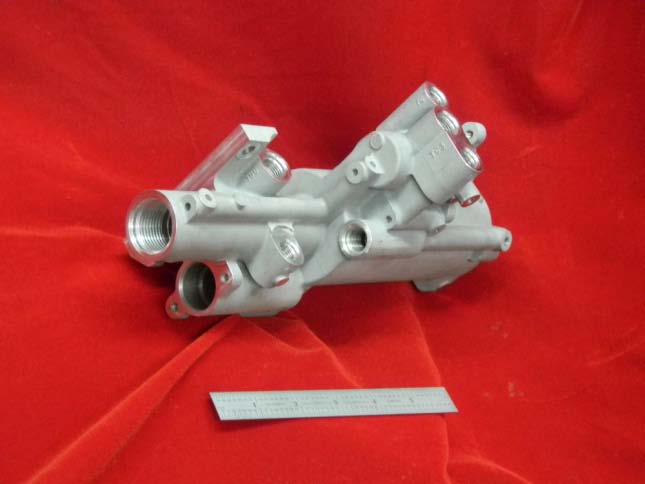

Timer
Timer
Material
Aluminum
Coating
Anodize
Components
7
Pieces
32
Size
2 In. × 6.20 In. × 10.86 In.
Precision MachiningPressure Test

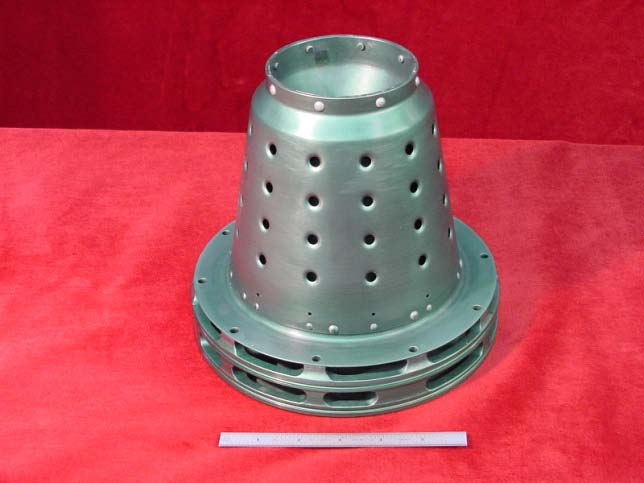

Manifold
Manifold
Material
Aluminum
Coating
Green Anodize
Components
12
Pieces
74
Size
8.5 In. Dia. × 8 In. High
Dip BrazingHeat TreatingPrecision Machining

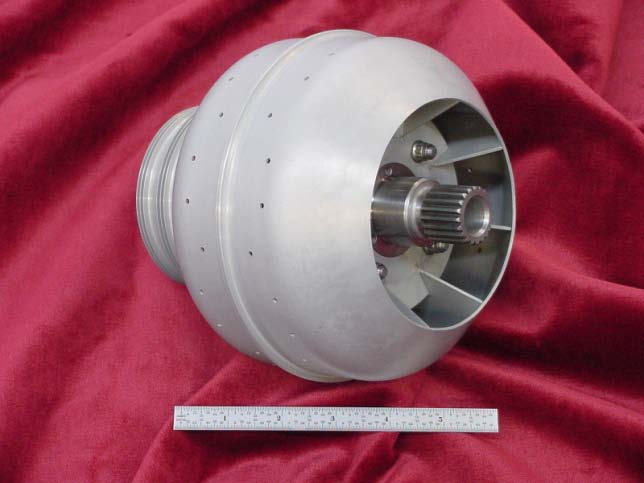

Air/Oil Impeller Separator
Air/Oil Impeller Separator
Material
Aluminum & 9310 Stainless
Coating
Anodize
Components
7
Pieces
12
Size
6 In. Dia. × 8 In. High
Dip BrazingHeat TreatingPrecision MachiningPrecision Balancing

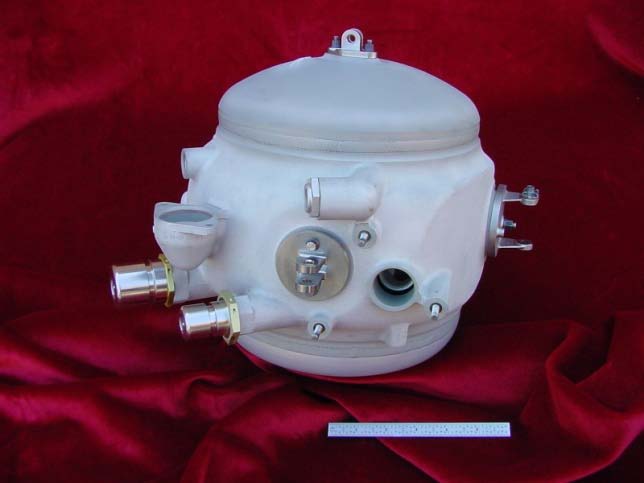

Oil Tank
Oil Tank
Material
Aluminum
Coating
Anodize
Components
72
Pieces
107
Size
11 In. Dia. × 11 In. High
Dip BrazingTIG WeldingHeat TreatingPressure TestingPrecision Machining

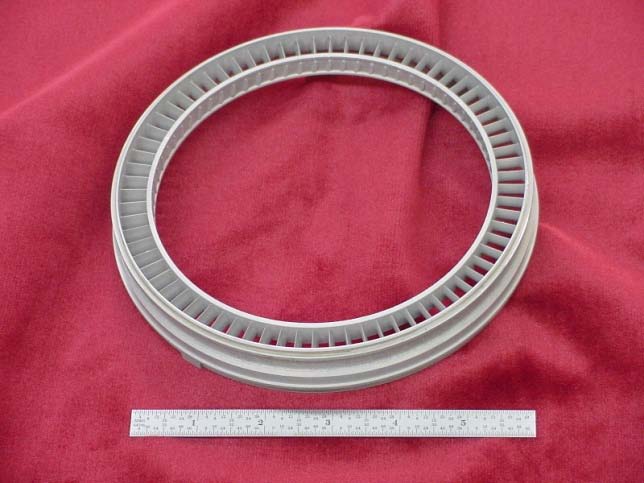

Turbine Stator
Turbine Stator
Material
Aluminum
Coating
Anodize
Components
3
Pieces
74
Size
7 In. Dia. × 1 In. High
Dip BrazingEDMHeat TreatingAir Flow TestingUltra Precision Machining

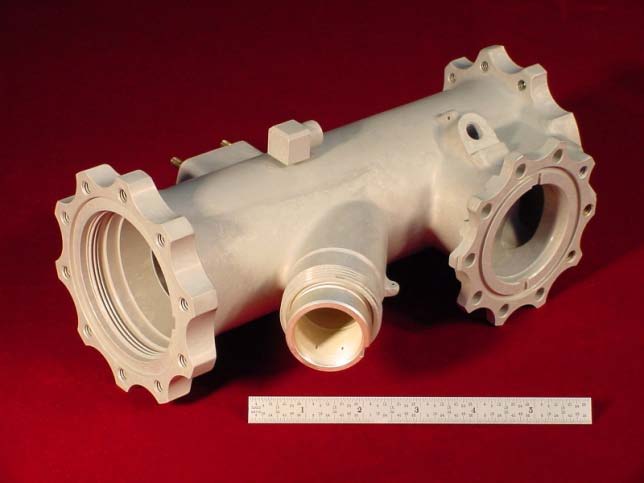

Oxidizer
Oxidizer
Material
Aluminum
Coating
Anodize & Hard Coat
Components
7
Pieces
14
Size
6.5 In. Dia. × 10 In. High
Dip BrazingEDMHeat TreatingCold ShockPressure TestHelium Leak CheckUltra Precision Machining

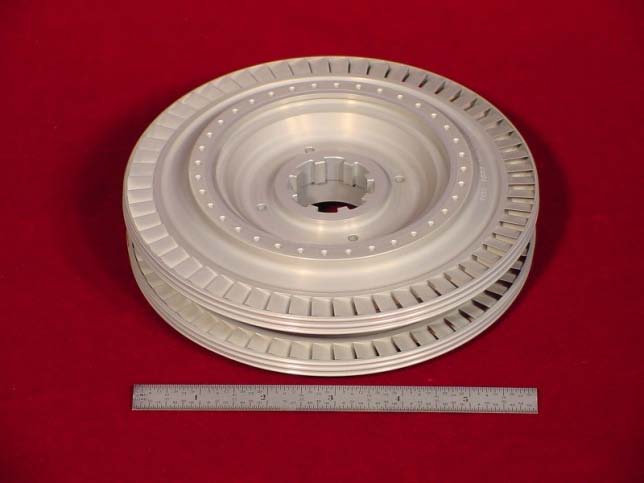

Turbine Rotor
Turbine Rotor
Material
Aluminum
Coating
Anodize
Components
5
Pieces
5
Size
6.5 In. Dia. × 1.75 In. High
Dip BrazingHeat TreatingSpin BalanceUltra Precision Machining
