Documented Parts
10 Parts in This Category

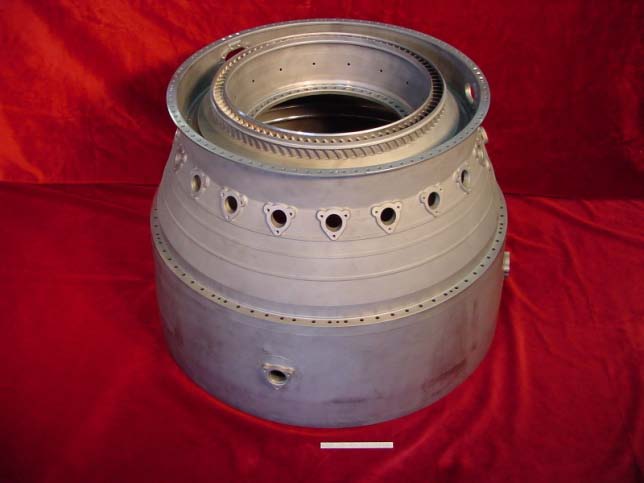

Combustion Case
Material
Inco 718
Coating
None
Components
5
Pieces
28
Size
36 In. Dia. × 24 In. High
TIG WeldingEB WeldingEDMECMHeat TreatingPrecision Machining

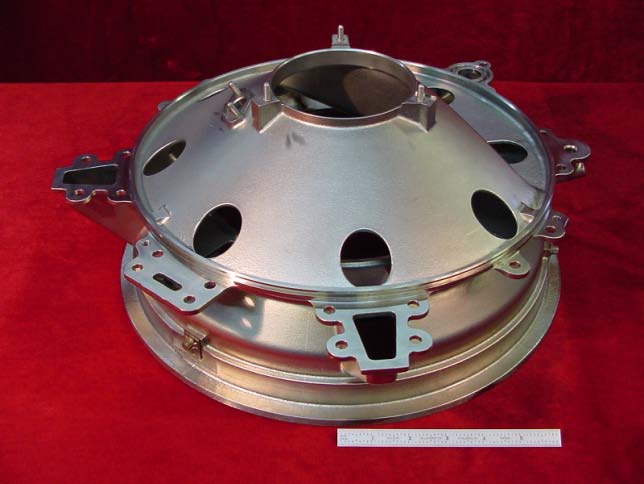

Bearing Support
Material
Titanium Casting, Hast X Honeycomb & Inco 718
Coating
Flame Spray
Components
11
Pieces
29
Size
17 In. Dia. × 7 In. High
Vacuum Brazing (Ni)GTAW WeldingHeat TreatSpecial CleaningEDMPrecision Machining

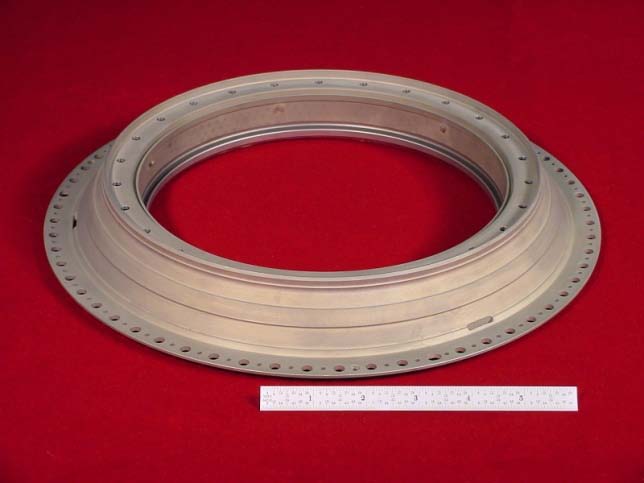

Shroud Support
Material
Inco 718, Inco 909 & Waspaloy
Coating
Chromide Coating
Components
14
Pieces
73
Size
12 In. Dia. × 3 In. High
EB WeldingTIG WeldingHeat TreatingEDMPrecision Machining

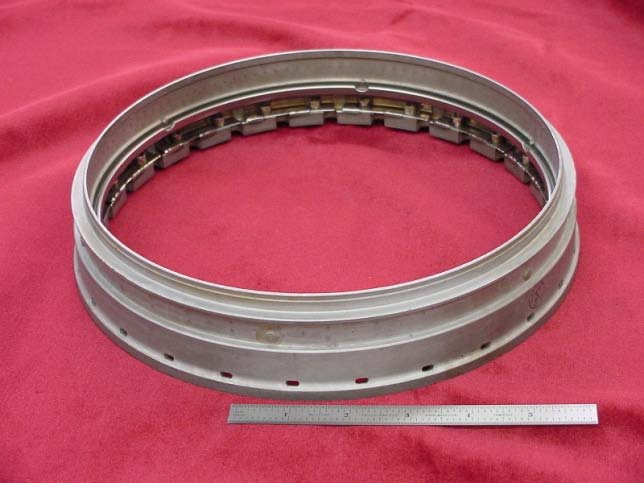

Shroud Support
Material
Inco 903
Coating
Chromide Coating
Components
7
Pieces
54
Size
10 In. Dia. × 2 In. High
EB WeldingTIG WeldingHeat TreatingEDMShot PeeningPrecision Machining

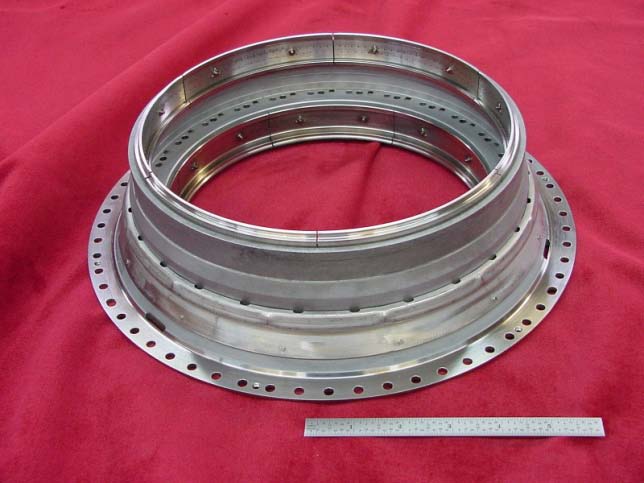

Shroud Support
Material
Inco 903 & Inco 718
Coating
Chromide Coating
Components
5
Pieces
10
Size
12.5 In. Dia. × 1.5 In.
EB WeldingTIG WeldingHeat TreatingEDMShot PeeningPrecision Machining

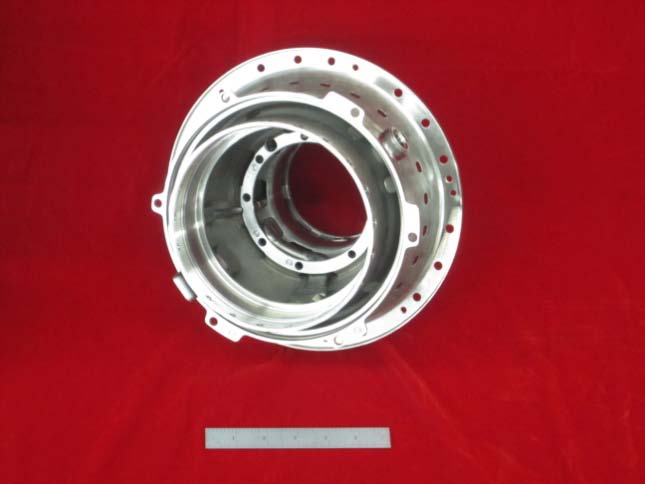

C-Sump
Material
Inco 600, Inco 625 & Inco 718
Coating
Special Ni Plate
Components
18
Pieces
38
Size
10.10 In. Dia. × 8.08 In. High
Vacuum Brazing & Heat TreatGTAW WeldingEDMSuper CleaningUltra Precision Machining

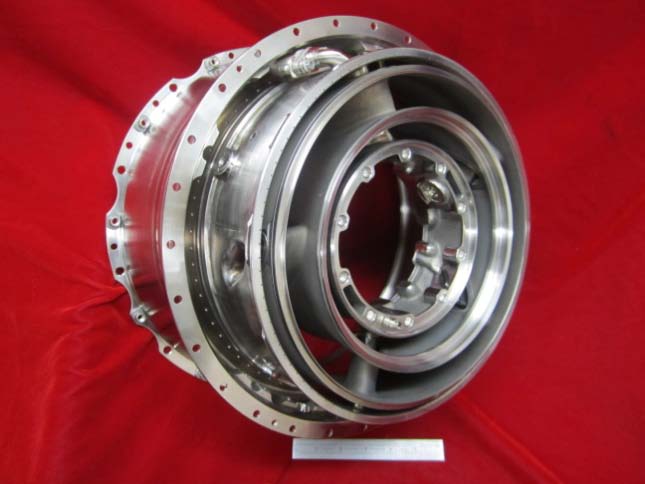

Intermediate Case
Material
C263 Nimonic, Inco 718, HAST X & 321 S.S.
Coating
Silver Plate
Components
38
Pieces
145
Size
12.83 In. Dia. × 7.82 In. Long
Vacuum Heat TreatingEB WeldingPressure TestingGTAW WeldingEDMAir FlowUltra-Precise Machining

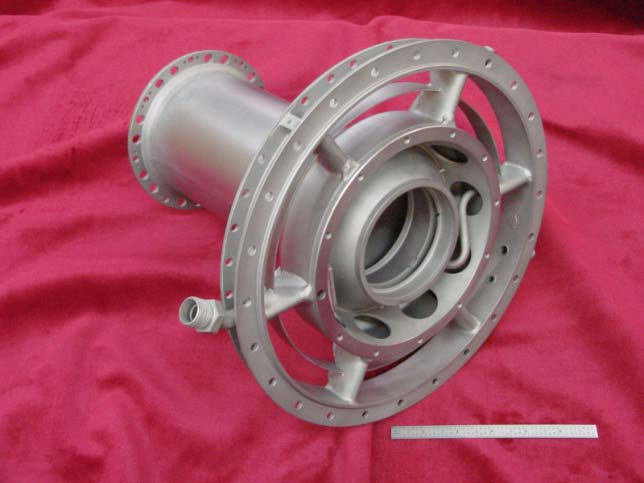

Rear Frame
Material
Inco 718 & Inco 625
Coating
None
Components
21
Pieces
48
Size
11 In. Dia. × 11 In. Long
Vacuum Brazing (Ni)TIG WeldingHeat TreatingEB WeldingEDMPressure TestingPrecision Machining

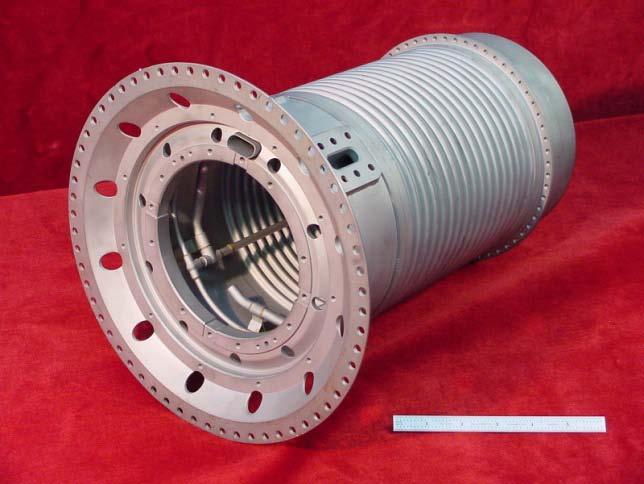

Bearing Support
Material
410 S.S., Inco 718 & Inco 600
Coating
None
Components
21
Pieces
21
Size
10.5 In. Dia. × 14 In. High
Hydrogen Brazing (Silver)Vacuum Brazing (Ni)TIG WeldingHeat TreatingEDMSeam WeldingEB WeldingPressure TestingPrecision Machining

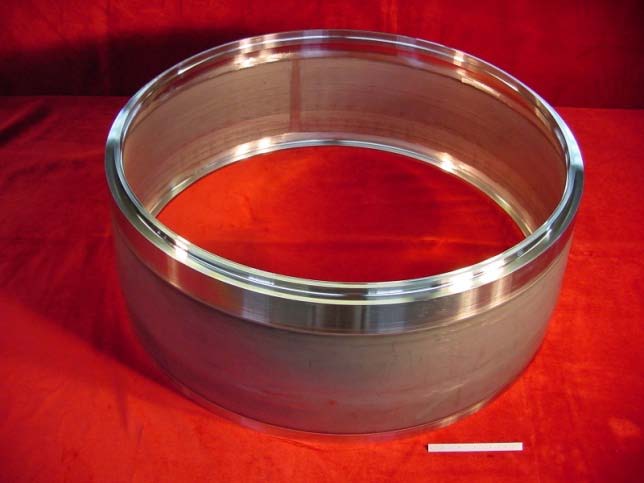

Aft Case
Material
Inco 718 — Premium Quality, Life Controlled
Coating
None
Components
3
Pieces
3
Size
34 In. Dia. × 13 In. High
EB WeldingPrecision Machining
